MSI PRO B850M-P WIFI AMD B850 AM5 mATX Motherboard

MSI PRO B850M-P WIFI | AMD B850 mATX Workstation Board

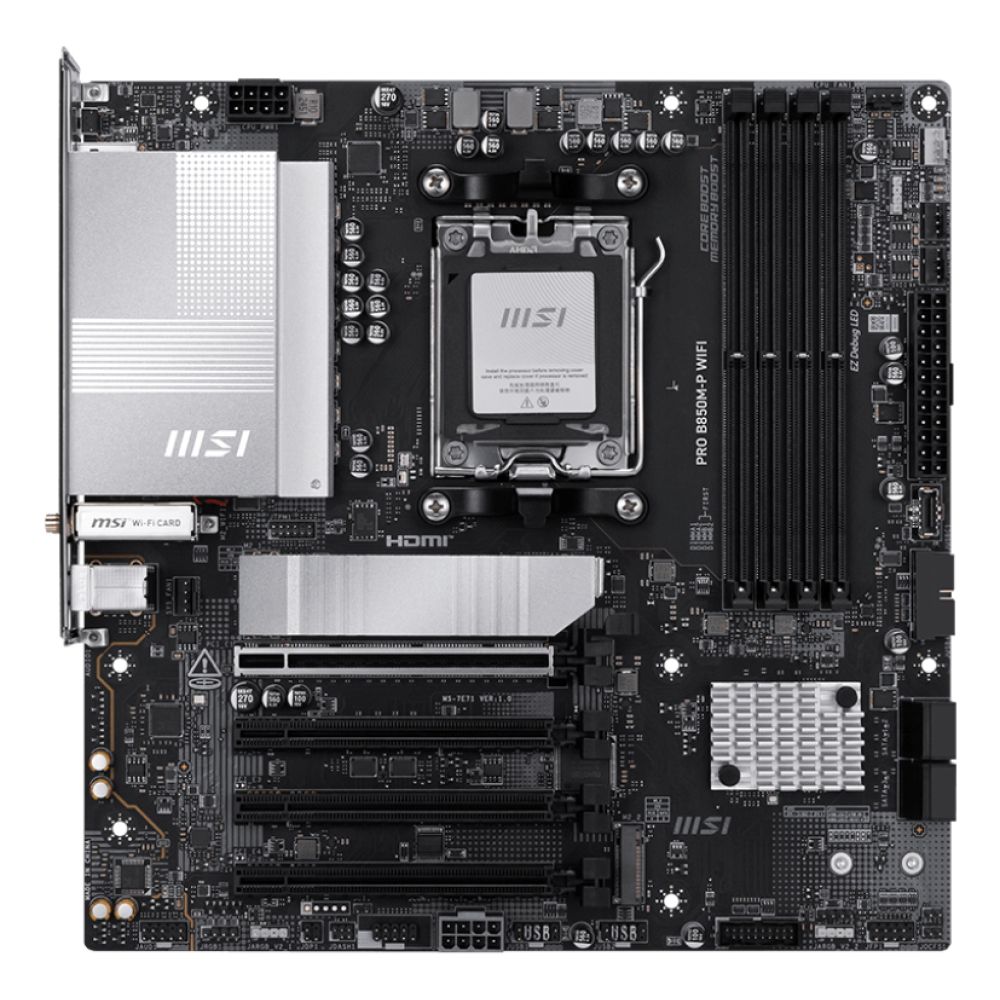

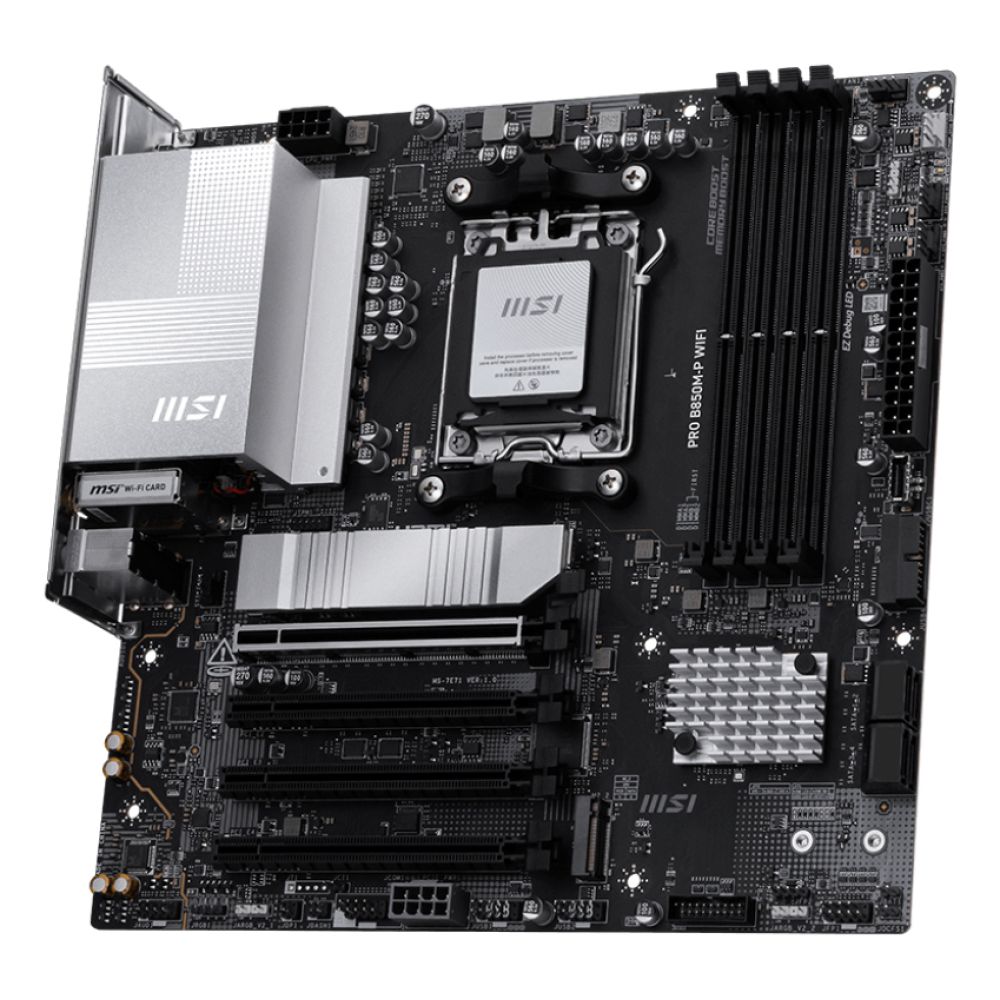

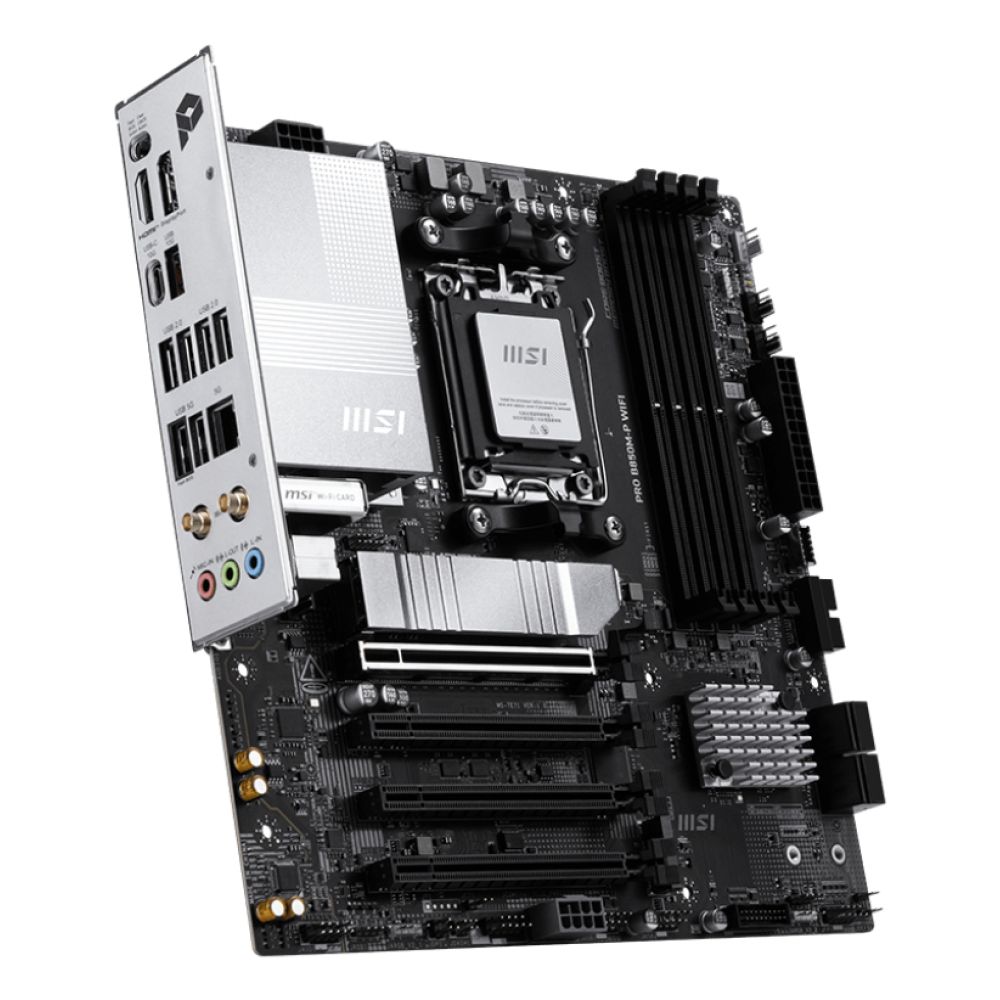

The MSI PRO B850M-P WIFI motherboard AMD B850 Socket AM5 micro ATX is engineered for UK professionals and creators. It supports AMD Ryzen 7000, 8000, and 9000 series processors. This board offers Wi-Fi 7, 5G LAN, and three M.2 slots for fast storage. It suits productivity builds and modern AI tasks.

Core Specs at a Glance

Future-Ready AM5 Platform

This board uses the AMD B850 chipset. It supports the latest Ryzen 9000 series processors. So, you can build a PC that stays relevant for years. The Socket AM5 platform ensures long-term upgrade paths. Also, it supports Windows 11 x64 for modern software.

High-Speed DDR5 Memory

It features four DDR5 DIMM slots. You can install up to 256 GB of memory. Supported speeds reach 8200 MHz (OC). Dual-channel architecture boosts bandwidth. This helps with multitasking and large datasets. However, ECC memory is not supported; check your needs if error correction is critical.

Triple M.2 with PCIe 5.0

The board includes three M.2 slots. Two slots support PCIe 5.0 for ultra-fast NVMe SSDs. The third slot runs at PCIe 4.0. All slots accommodate 2280-size drives. The EZ M.2 Shield Frozr II helps with thermal management. This keeps SSDs cool under heavy loads. Note: On-board graphics are not available; you need a dedicated GPU.

Robust Power and Thermal Design

A 7+2+1 phase digital VRM powers the CPU steadily. The 8-pin ATX connector handles heavy workloads. Extended heatsinks and 7W/mK thermal pads dissipate heat efficiently. Transient Voltage Suppressors (TVS) protect against power spikes. These features maintain performance during sustained tasks.

Next-Gen Connectivity

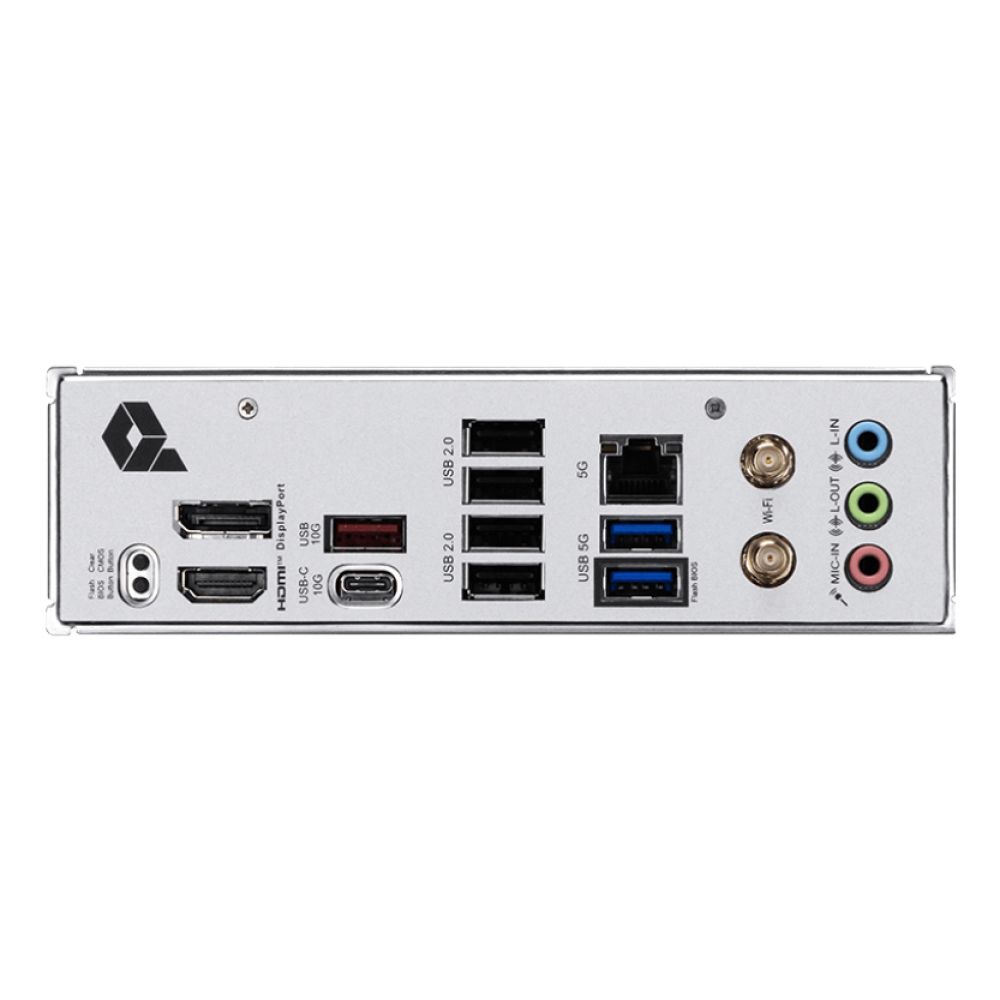

You get 5G LAN for wired speed. Wi-Fi 7 (802.11be) offers lower latency and higher efficiency. The EZ Antenna includes a magnetic stand for easy placement. Bluetooth 5.4 supports wireless peripherals. Rear ports include HDMI 2.1 for basic display output. USB options are plentiful: 4x USB 3.2 Gen 1, 3x USB 3.2 Gen 2 Type-A, and 2x Type-C.

Optimised for Productivity

MSI AI LAN Manager prioritises latency-sensitive apps. This is useful for video editing or online meetings. The board supports RAID 0, 1, and 10 for storage redundancy. Seven storage drives can be connected in total. The Realtek ALC897 audio chip delivers 7.1-channel output. However, audio quality depends on your speakers or headphones.

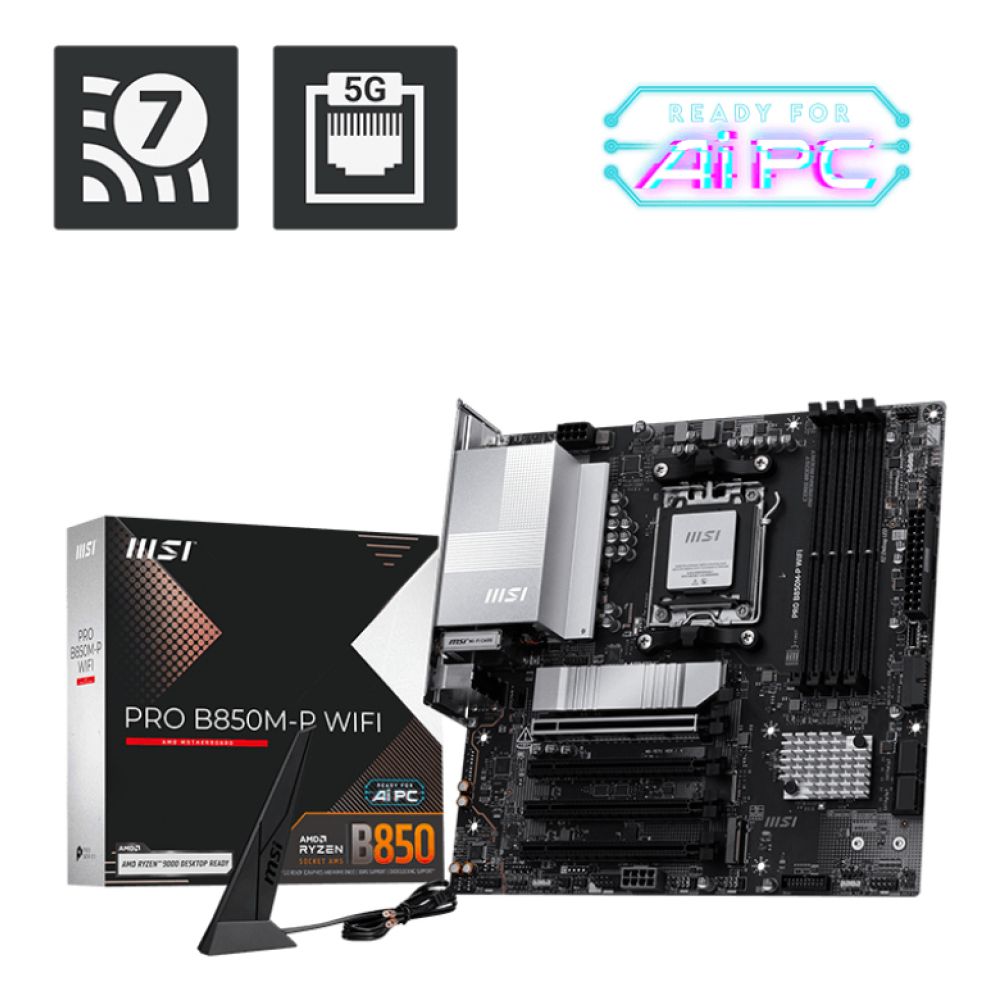

Box contents

• MSI PRO B850M-P WIFI motherboard
• SATA cables
• Wi-Fi antenna
• M.2 mounting screws
• Quick start guide
• Driver disc (or download link)

Check before you buy

• Confirm your case fits a micro ATX board (243.8 x 243.8 mm).
• Verify you have a dedicated graphics card, as there is no on-board GPU.
• Check Wi-Fi band requirements; this board supports Wi-Fi 7 but requires compatible routers.
• Ensure your PSU has a 24-pin ATX and 8-pin CPU power connector.

Frequently Asked Questions

Q: Does this motherboard support AMD Ryzen 7000 series processors?

A: Yes, it supports AMD Ryzen 7000, 8000, and 9000 series CPUs on Socket AM5.

Q: How many M.2 slots are available?

A: There are three M.2 slots, with two supporting PCIe 5.0 and one PCIe 4.0.

Q: Is Wi-Fi 7 compatible with older routers?

A: Yes, it supports older Wi-Fi standards, but Wi-Fi 7 speeds need compatible routers.

Q: What is the maximum memory capacity?

A: The board supports up to 256 GB of DDR5 memory across four DIMM slots.

Q: Does it have on-board graphics?

A: No, you must use a dedicated graphics card for display output.

The Consultant’s verdict & warranty

This board is ideal for UK professionals building a compact, future-proof PC. It suits creators, coders, and office users who need fast storage and reliable networking. The Wi-Fi 7 and 5G LAN are strong for data-heavy tasks. However, gamers need a separate GPU. Covered by the standard Manufacturer Warranty.
